In this Vehicle Platform Guide, you will find the top common issues of BMW X7 M50i (G07; 2020-2022) 4.4L Twin-Turbo V8, along with their fault codes, and the solutions from eEuroparts.com
The 2020–2022 BMW X7 M50i (G07) 4.4L Twin-Turbo V8 is a full-size luxury SUV that combines muscular performance with executive refinement and advanced technology. Powered by BMW’s 4.4-liter twin-turbocharged V8 petrol engine (N63B44D), it delivers 523 horsepower and 553 lb-ft (750 Nm) of torque, offering thrilling acceleration and confident high-speed cruising. It is paired with an 8-speed Steptronic automatic transmission and BMW’s xDrive all-wheel-drive system for optimal traction and dynamic handling.
Specifications
Engine and Powertrain
Engine:
4.4L Twin-Turbocharged V8 (N63)
Transmission:
8-Speed Automatic (ZF 8HP)
Fuel Type:
Gasoline
Horsepower:
523 hp at 5,500–6,000 rpm
Torque:
553 lb-ft at 1,800–4,600 rpm
Fuel Economy (EPA Estimates)
City:
15 mpg
Highway:
21 mpg
Combined:
17 mpg
Vehicle Weight
Curb Weight:
~5,661 lbs
Gross Weight:
~7,319 lbs
Configurations and Submodels
Body Styles:
SUV
Seating Capacity:
seven-passenger
Drivetrain Options:
xDrive Intelligent All-Wheel Drive
Top Common Issues with BMW X7 M50i (G07; 2020-2022) 4.4L Twin-Turbo V8:
Parking Brake Actuator
1. Electronic Parking Brake Actuator Failure:
Fault Codes:
C1AFA signals blind spot monitor misalignment; U3003 indicates low ABS module voltage, often caused by weak battery or wiring faults.
Why it happens:
Faulty wiring, low voltage, servo motor failure, or debris in switch disrupt actuator function, causing electronic parking brake failure.
Symptoms:
The parking brake fails to engage or release when the switch is pressed.
A warning light or “Parking Brake Error” message appears on the dashboard.
You hear clicking, buzzing, or grinding noises from the rear wheels during activation.
The vehicle struggles to move, especially if the brake is stuck engaged.
The brake system works sporadically due to wiring faults or inconsistent voltage.
C1F20 and C1F21 indicate chassis communication faults—often caused by wiring shorts, voltage irregularities, sensor errors, or module failures.
Why it happens:
Rear height level sensor failure occurs from corrosion, wiring faults, moisture intrusion, broken linkages, poor calibration, or excessive suspension movement.
Symptoms:
Uneven ride height – One side of the vehicle may sit noticeably lower or higher, especially after overnight parking, due to incorrect sensor readings.
Suspension warning light or fault codes – The dashboard may display alerts like “Level Control Malfunction” or fault codes such as C1713, B2902, or 520 F11.
Rough or bouncy ride – The suspension may fail to adjust properly, causing poor damping and excessive bounce over bumps or uneven terrain.
Hissing or air release sounds – Leaking air springs triggered by false sensor input can cause audible air discharge from the rear suspension.
Failure to engage self-leveling or 4WD modes – The system may not respond to load changes or terrain shifts, affecting drivability and traction.
Parts to Replace
Arnott Industries RH-4387 - Suspension Ride Height Sensor is an Arnott headlight level sensor for adaptive lighting, fits BMW/MINI models with xenon or LED systems.
Suspension knuckle failure occurs from curb impacts, pothole strikes, corrosion, warped bushings, debris damage, misalignment, or over-torqued components.
Symptoms:
Clunking or grinding noises while turning – Damaged knuckles can cause metal-on-metal contact or misaligned components, producing sharp sounds during steering or over bumps.
Uneven tire wear – A bent or warped knuckle throws off wheel alignment, leading to excessive wear on the inner or outer edges of tires.
Vehicle pulling to one side – Misalignment from knuckle damage can cause the car to drift even when the steering wheel is centered.
Steering vibration or poor response – A faulty knuckle may distort steering geometry, resulting in shaky steering or delayed wheel movement.
Loose suspension or brake components – Worn knuckles may fail to hold ball joints, control arms, or calipers securely, causing excessive play or braking issues.
Parts to Replace
Rear Driver Side Part # 33306876651 The Genuine BMW Suspension Knuckle part number 33306876651 is a top-quality component designed and manufactured to meet the exact standards and specifications of your BMW.
Rear Passenger Side Part # 33306876652 The Genuine BMW Suspension Knuckle part number 33306876652 is a must-have for BMW owners who take their car’s performance seriously.
Sway bar link failure occurs from worn bushings, rust, impact damage, loose fasteners, aging joints, poor lubrication, or overloading.
Symptoms:
Clunking or rattling noises over bumps – Worn or loose sway bar links often produce sharp sounds when driving over uneven surfaces or turning corners.
Excessive body roll during turns – The vehicle may lean more than usual when cornering, indicating reduced stabilization from compromised sway bar links.
Poor handling or steering response – You might feel less control, especially during quick maneuvers, due to weakened suspension support.
Uneven tire wear – A failed link can affect wheel alignment, causing abnormal wear patterns on the tires.
Visible damage or looseness – On inspection, you may notice cracked bushings, bent links, or excessive play in the sway bar connection.
Parts to Replace
Front Passenger Side Part # 31356881808 The Genuine BMW Suspension Stabilizer Bar Link Kit part number 31356881808 is designed to enhance the overall performance of your BMW vehicle.
Front Driver Side Part # 31356881807 The Genuine BMW Suspension Stabilizer Bar Link Kit part number 31356881807 is the perfect solution for those seeking to enhance their BMW’s driving experience.
Rear shock absorber failure occurs from oil leaks, worn seals, corrosion, rough terrain, overloading, aging components, or poor installation.
Symptoms:
Excessive rear-end bounce or squat – After hitting bumps or accelerating, the rear may continue bouncing or dip dramatically, indicating worn damping control.
Uneven rear tire wear – Cupping or scalloping on the tread suggests poor road contact due to compromised shock performance.
Rattling or clunking noises from the rear – Internal wear or broken bushings can cause abnormal sounds over rough terrain or during turns.
Reduced traction and handling – The vehicle may sway, feel unstable, or lose grip during cornering, especially at higher speeds.
Fluid leaks on or near the shock body – Oil seepage from the shock casing signals seal failure and loss of damping capability.

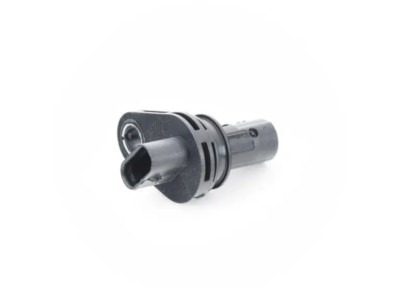

P0335 flags crankshaft position sensor circuit malfunction; P0336 indicates sensor signal range/performance issue—both disrupt ignition timing and RPM data.
Why it happens:
Crankshaft position sensor failure occurs from overheating, vibration damage, oil contamination, wiring faults, magnetic interference, or improper installation.
Symptoms:
Check Engine Light with fault codes – Common codes like P0335 or P0336 appear when the sensor signal is missing or erratic.
Engine stalling or shutting off unexpectedly – A failing sensor can disrupt ignition timing, causing the engine to stall at idle or while driving.
Hard starting or no start condition – Without accurate crankshaft data, the ECU may fail to initiate proper spark and fuel delivery.
Poor acceleration and reduced performance – Incorrect timing leads to sluggish throttle response and noticeable power loss.
Engine misfires or rough idle – Inconsistent RPM readings can cause misfires, vibrations, and unstable idle behavior.
P0300 signals random misfires; P0301–P0308 indicate misfires in cylinders 1 through 8, caused by ignition, fuel, or compression issues.
Why it happens:
Spark plug failure occurs from carbon fouling, oil contamination, overheating, incorrect gap, poor torque, wrong heat range, or corrosion.
Symptoms:
Check Engine Light activation – Fault codes like P0300–P0308 often appear when one or more spark plugs misfire or fail to ignite properly.
Sluggish acceleration or hesitation – Faulty plugs disrupt combustion timing, causing delayed throttle response or uneven power delivery.
Rough idle or engine vibration – Misfiring cylinders lead to unstable RPMs, noticeable shaking, and sputtering at stoplights or during startup.
Poor fuel economy – Incomplete combustion forces the engine to burn more fuel, reducing mileage and increasing emissions.
Hard starting or stalling – Weak or absent spark makes cold starts difficult and may cause the engine to stall unexpectedly.
Parts to Replace
OEM BMW Spark Plug 12120057704 is a genuine BMW high-power spark plug for N63/S63 engines, ensuring precise ignition and optimal combustion performance.
B14E2 signals a short in driver’s air mix door actuator circuit; B14E3 indicates passenger side actuator circuit wire break.
Why it happens:
Steering wheel failure occurs due to worn bearings, loose linkages, power steering faults, misalignment, or damaged column components and joints.
Symptoms:
The steering wheel feels unusually stiff or loose, making it harder to control the vehicle.
You hear clunking, whining, or grinding noises when turning the wheel, especially at low speeds.
The vehicle drifts to one side even when driving straight, despite proper wheel alignment.
Fluid leaks appear beneath the engine bay, often indicating power steering system issues.
A burning oil smell may emerge from the steering column area due to overheating or leaking fluid.
Parts to Replace
OEM BMW Steering Wheel 32308008179 The Genuine BMW Steering Wheel part number 32308008179 / 32 30 8 008 179 is a must-have for any BMW owner looking to enhance their driving experience.
VANOS solenoid valve failure occurs from clogged oil passages, worn seals, electrical faults, o-ring degradation, contamination, or overheating.
Symptoms:
Check Engine Light and fault codes – Common codes like 2A82 (intake) and 2A87 (exhaust) often appear when solenoids malfunction or jam.
Sluggish acceleration and reduced power – Poor camshaft timing disrupts torque delivery, especially below 3,000 RPM, making the engine feel bogged down.
Rough idle or stalling – Inconsistent valve timing can cause unstable idle, hiccups, or even engine shutdown during cold starts.
Decreased fuel efficiency – Improper timing leads to inefficient combustion, increasing fuel consumption and emissions.
Engine enters limp mode – The ECU may restrict performance to protect components when VANOS timing deviates from expected parameters.
Parts to Replace
OEM Camshaft Adjuster Actuator Part # 11378652738 The Genuine BMW Engine Variable Valve Timing (VVT) Solenoid part number 11378652738 is a top-of-the-line product that provides exceptional benefits and features for your BMW.
OEM BMW Vanos Actuator 11367614288 This Genuine BMW Engine Variable Valve Timing (VVT) Adjuster part number 11367614288 / 11 36 7 614 288 is a must-have for any BMW owner who wants to keep their car running smoothly.
Ignition knock sensor failure occurs from engine heat, vibration damage, oil contamination, poor grounding, aging, or electrical interference.
Symptoms:
Check Engine Light with fault codes – Common codes like P0325 (Bank 1) and P0330 (Bank 2) often appear when the knock sensor circuit malfunctions or sends erratic signals.
Metallic pinging or knocking sounds – Without proper sensor feedback, the ECU may fail to adjust timing, allowing premature combustion that produces audible engine knock.
Reduced acceleration and power – The ECU may retard ignition timing to prevent damage, resulting in sluggish throttle response and poor performance under load.
Increased fuel consumption – Incorrect timing leads to inefficient combustion, forcing the engine to burn more fuel to maintain output.
Engine misfires or hesitation – Inconsistent spark timing from missing knock data can cause misfires, rough idle, or hesitation during acceleration.
Parts to Replace
OEM BMW Knock sensor 13627598861 The Genuine BMW Ignition Knock (Detonation) Sensor, part number 13627598861 / 13 62 7 598 861, is an essential component of your BMW’s engine management system.
Febi-Bilstein 38709 - Ignition Knock (Detonation) Sensor The Febi-Bilstein Ignition Knock (Detonation) Sensor part number A2C59506395 is a reliable replacement component designed for BMW vehicles that require a functional ignition system.
P17E1 and P17F8 indicate clutch ratio monitoring faults; 420601 flags transmission parking lock engagement error—often linked to mechatronic issues.
Why it happens:
Transmission oil pan failure occurs from gasket wear, over-torqued bolts, road debris impact, corrosion, poor sealing, or cracked housing.
Symptoms:
Fluid puddles under the vehicle – Transmission fluid may leak and pool beneath the car, especially after parking overnight. This is often the first visible sign.
Low transmission fluid levels – A failing pan or gasket causes gradual fluid loss, which shows up on the dipstick and can lead to shifting issues.
Burnt chemical smell – Leaking fluid can cause overheating inside the transmission, producing a distinct burnt odor from the transmission area.
Erratic or hard shifting – Insufficient fluid pressure due to leaks may result in delayed gear engagement, harsh shifts, or slipping between gears.
Unusual noises during shifting – Grinding, whining, or humming sounds can occur when fluid levels drop too low, affecting internal lubrication.
BMW Transmission Oil Pan 24117624192 The OEM Transmission Filter, part number 24117624192 / 24 11 7 624 192, is a reliable and durable replacement part for your BMW.
Transmission shift lever knob failure occurs from wear, impact damage, loose mounting, broken clips, internal linkage faults, or electrical issues.
Symptoms:
Loose or wobbly shift feel – The knob may feel unstable or rotate freely, often due to worn bushings, broken clips, or stripped threads.
Gear selection mismatch – You might shift into drive but the indicator shows neutral or reverse, caused by internal linkage misalignment or knob detachment.
Failure to engage or disengage gears – The lever may not lock into position, preventing proper gear engagement and risking transmission damage.
Clicking or grinding noises during shifting – Damaged internal components or misaligned linkage can produce abnormal sounds when moving the shifter.
Intermittent gear response or stuck lever – The knob may jam or fail to return to neutral, often linked to electrical faults in electronic shifters or mechanical wear.
Parts to Replace
Genuine BMW 61312250698 - Automatic Transmission Shift Lever Knob This Genuine BMW Automatic Transmission Shift Lever Knob part number 61319296906 is an essential replacement part for your BMW.
P17D8 flags clutch temperature torque limitation; 530908 indicates transmission control fault—both suggest overheating or mechatronic issues in drivetrain.
Why it happens:
Transfer case shaft seal failure occurs from age, vibration, debris impact, poor installation, worn bearings, overheating, or misaligned driveshaft.
Symptoms:
Visible fluid leaks near the driveshaft – Gear oil or transmission fluid may drip from the seal area, often forming reddish or brown puddles under the vehicle.
Whining or grinding noises during 4WD operation – Low fluid levels from seal failure can cause metal-on-metal contact inside the transfer case, producing abnormal sounds.
Difficulty shifting into or out of 4WD – Insufficient lubrication affects internal gear engagement, making it harder to switch drive modes smoothly.
Unexpected disengagement of 4WD – The system may randomly drop out of four-wheel drive due to internal pressure loss or overheating from fluid starvation.
Loss of traction or performance in AWD/4WD – Reduced fluid pressure and lubrication can impair torque distribution, especially during off-road or slippery conditions.
Parts to Replace
Genuine BMW 27107546667 - Transfer Case Output Shaft Seal (Rear) is a genuine BMW transfer case input shaft seal for AWD models, ensuring leak-free driveshaft connection from 2016–2025.
Genuine BMW 27107539262 - Transfer Case Input Shaft Seal is a genuine BMW transfer case Input shaft seal for AWD models, ensuring leak-free driveshaft sealing from 2016–2025.
C0035 and C0040 indicate left and right front wheel speed sensor circuit faults, often caused by damaged sensors, wiring, or connectors.
Why it happens:
Wheel bearing and hub assembly failure occurs from impacts, contamination, misalignment, poor lubrication, corrosion, overloading, or improper installation.
Symptoms:
You hear a humming, grinding, or growling noise from the wheel area that intensifies with speed.
The steering wheel vibrates noticeably, especially when driving at highway speeds or turning.
The vehicle pulls to one side during braking due to uneven wheel rotation.
Uneven tire wear develops, often showing scalloped or cupped tread patterns.
The ABS warning light illuminates from erratic wheel speed sensor readings caused by bearing play.
Parts to Replace
Genuine BMW 31206870725 - Wheel Bearing and Hub Assembly (Front) is a genuine rear hub and bearing assembly for G07 X7, ensuring precise fitment and smooth wheel rotation.
B1640 indicates mirror passenger left circuit open; B1641 signals short to battery in same circuit, often due to wiring faults.
Why it happens:
Door lock actuator motor failure occurs from worn gears, electrical faults, corrosion, moisture intrusion, overheating, or degraded internal components.
Symptoms:
The power door lock doesn’t respond when using the key fob or interior switch.
You hear buzzing, clicking, or grinding noises from inside the door during lock operation.
The door locks or unlocks erratically, sometimes engaging on their own.
One door remains stuck locked or unlocked while others function normally.
The “door ajar” warning light stays on even when all doors are securely closed.
Parts to Replace
Genuine BMW 51217202143 - Door Lock Actuator Motor The Genuine BMW Door Lock Actuator Motor, part number 51217477699, is a reliable and high-quality component designed to ensure the security of your BMW.
Genuine BMW 51217229461 - Door Latch Assembly The Genuine BMW Door Latch Assembly part number 51227477706 is a high-quality replacement part that is designed to offer excellent performance and durability.
P0070 flags ambient air temperature sensor circuit fault; P0071 indicates sensor range/performance issue—both affect climate control and engine tuning.
Why it happens:
Ambient air temperature sensor failure occurs from debris impact, corrosion, wiring faults, moisture intrusion, aging, poor mounting, or voltage irregularities.
Symptoms:
Incorrect outside temperature readings – The dashboard may show implausible values like –40°C on a warm day or freeze at one number regardless of conditions.
Automatic climate control malfunctions – Systems may fail to adjust fan speed or temperature properly, forcing manual overrides due to missing or faulty sensor input.
A/C compressor fails to engage – Some vehicles prevent compressor activation if ambient readings are missing or erratic, leading to no cold air output.
Erratic fan or HVAC behavior – You might notice rapid cycling of the A/C compressor or inconsistent airflow, often caused by fluctuating sensor signals.
Fault codes like P0070 or P0071 – These indicate circuit faults or range/performance issues in the ambient temperature sensor, often triggering the check engine light.
Parts to Replace
OEM BMW Outside Temperature Sensor 65816936953 The Genuine BMW Ambient Air Temperature Sensor part number 65816936953 / 65 81 6 936 953 is the perfect replacement part for your BMW’s air conditioning system.
Brands
Genuine BMW
Why eEuroparts.com?
At eEuroparts.com, we’re dedicated to being your trusted source for everything your BMW X7 M50i 4.4L needs to perform at its best. With our commitment to fair pricing, fast delivery, and a wide selection of premium OEM and aftermarket parts, we help ensure your high-performance SUV stays road-ready without unnecessary expense.
Exceptional Delivery, Unmatched Logistics
We know every moment matters when your car is off the road. That’s why we’ve built an efficient logistics network and fast shipping process designed to minimize downtime and get your parts to you quickly.
Competitive Prices, Superior Value
When you shop at eEuroparts.com, you don’t have to choose between quality and affordability. Our wide range of parts is competitively priced, giving you dependable value without compromising on standards.
Trusted Excellence
We carry only reliable brands, such as Genuine VW/Audi, Bosch, Denso, and more. Each product meets or exceeds OEM standards, so you can purchase with confidence knowing you’re getting dependable replacements.
Conclusion
Your BMW X7 M50i 4.4L is engineered for exhilarating performance and everyday reliability, but consistent maintenance is crucial to preserve its peak potential. With VIN-verified fitment, competitive pricing, and trusted brands, eEuroparts.com ensures you get the right parts to stay ahead of service needs and continue enjoying the thrilling drive your X7 Competition was built to deliver.
Frequently Asked Questions
Why does my BMW X7 M50i have a rough idle or engine misfire?⌄
Rough idle or misfires often result from carbon buildup on intake valves (due to direct injection), worn spark plugs, or failing ignition coils. It’s best to replace all eight plugs and coils together to restore smooth performance.
What causes oil leaks near the turbochargers or valve covers?⌄
The N63 V8 is known for oil leaks from the valve cover gaskets, turbo oil lines, and the upper timing cover. Overheating and high turbo pressure degrade seals faster—OEM gaskets and proper torqueing help prevent recurrence.
Why does my BMW X7 M50i consume excessive engine oil?⌄
High oil consumption can stem from worn valve stem seals, turbocharger oil seals, or piston ring wear. It’s common in early-stage N63 engines—frequent oil checks and using BMW-approved 5W-30 synthetic oil are essential.
What does “Drivetrain Malfunction” mean on the dashboard? ⌄
This message appears when the ECU detects issues with the ignition, fuel, or boost systems. Common culprits include failing ignition coils, high-pressure fuel pump (HPFP) faults, or turbo wastegate actuator issues. Diagnostics will show related P-codes like P0300, P0299, or P0087.
Why does my X7 M50i make a rattling noise at startup?⌄
Startup rattles usually come from the timing chain tensioner or VANOS units losing oil pressure after engine shut-off. Replacing the tensioners and checking for chain elongation can prevent severe timing misalignment.
What Customers Say on Trustpilot
★★★★★
I ordered a water pump for my BMW "I ordered a water pump for my BMW, I was by far the best price I was able to find online and I received it ahead of schedule two days earlier"- Maria Walker
★★★★★
My parts were affordable and top of the… "My parts were affordable and top of the line products! I couldn’t have gotten a better deal or service anywhere else! My parts for my BMW came quick without any issues! I’ll definitely shop with you guys again! Preciate y’all!”- Nick
Apr 13, 2025Celebrating 25 Years of Excellence at eEuropartsSince its inception in 2000, eEuroparts has been dedicated to providing European car owners and enthusiasts throughout the United States with top-quality Genuine, OEM, and premium aftermarket parts. What started as a small passion project has evolved into a prominent player in the auto parts sector, renowned for its dependability, swift shipping, and unparalleled customer service. Over the years, we've successfully processed more than 20 million orders, ensuring that premium European parts are accessible no matter your location.
Aug 18, 2024Saab 9-3 Lower Control Arm Symptoms and ReplacementThe Saab 9-3 is cherished by automotive enthusiasts for its unique design and turbocharged performance, representing a high point in Swedish automotive engineering. This model has fostered a dedicated following, even after Saab's exit from the automotive market. However, like many vehicles that age, the Saab 9-3 presents maintenance challenges, particularly regarding its lower control arm—a key element of the suspension system.
Aug 12, 20242018 Mercedes-Benz Sprinter 2500 Oil Cooler Leaks ExplainedIf you're the proud owner of a 2018 Mercedes-Benz Sprinter 2500, you value its reliability for a variety of uses, from deliveries to road trips. However, like all vehicles, it's not without its issues, with oil cooler leaks being a common concern among owners. While the term oil cooler may sound technical, this guide will simplify the topic and provide you with essential insights.
Aug 6, 20242013 Mercedes-Benz G550 Secondary Air Pump IssuesThe 2013 Mercedes-Benz G550 is a luxurious SUV recognized for its impressive performance and off-road capabilities. A crucial component that ensures its smooth operation and compliance with strict emissions standards is the secondary air pump. This essential part of the emissions system reduces harmful exhaust emissions during the initial startup phase, particularly when the engine is cold.
