Range Rover Sport 5.0L V8 Issues & Fixes (2010–2013)

Fault Codes:

Fault codes C0035-C0051 indicate wheel speed sensor range or performance issues, while U0121 signals lost communication with the ABS control module.

Why it happens:

ABS wheel speed sensor failure typically occurs due to dirt buildup, damaged wiring, corroded connectors, or worn tone rings, all of which disrupt the sensor’s ability to accurately detect wheel speed and communicate with the ABS module.

Symptoms:

• ABS warning light - Usually the first sign, triggered when the system detects inaccurate or missing wheel speed data.
• Pulsating brake pedal - The ABS may activate unnecessarily, causing a pulsing sensation during normal braking.
• Loss of anti-lock braking - The system may shut down, reverting to standard braking and increasing the risk of wheel lockup.
• Traction or stability control issues - These systems rely on accurate wheel speed data and may also be disabled.
• Speedometer glitches - In rare cases, the speedometer may stop working or behave erratically.
• Longer stopping distances - Without ABS support, braking performance can suffer, especially on slippery surfaces.
• Check engine or traction control lights - Additional warning lights may appear depending on the vehicle’s system design.

Parts to Replace

• Land Rover ABS Wheel Speed Sensor - Bosch 0265007922 The Land Rover Rear ABS Wheel Speed Sensor - SSB500102 (Bosch 0265007922) is a direct OE replacement designed for the rear left or right wheel on several Land Rover models.

Brands

• Bosch

Why it happens:

Brake pad wear typically occurs due to friction from braking, heat buildup, and uneven caliper pressure, often worsened by stuck pistons, misalignment, or rotor issues.

Symptoms:

• Squeaking or squealing noises - Often the first sign, caused by built-in wear indicators rubbing against the rotor.
• Grinding sounds - A harsher noise that means the pads are worn down completely, causing metal-on-metal contact.
• Longer stopping distances - You may notice it takes more time or effort to bring the car to a halt.
• Soft or spongy brake pedal - The pedal may feel less responsive due to reduced pad thickness or air in the system.
• Vibration or pulsation when braking - Often caused by uneven pad wear or warped rotors.
• Brake warning light - Some vehicles have sensors that trigger a dashboard alert when pads are too thin.
• Visible pad wear - If you peek through the wheel spokes and see less than 3mm of pad material, it’s time for a change.

Parts to Replace

• Front The Bosch BP1426 Front Disc Brake Pad Set is a high-quality OE replacement designed for Land Rover vehicles, particularly models like the Defender (L663) and Range Rover Sport.
• Rear BP1427 The Bosch BP1427 QuietCast Rear Disc Brake Pad Set is a premium OE-style replacement designed for select Land Rover Range Rover and Range Rover Sport models.
• Hella Pagid 5305753 - Disc Brake Rotor Kit.

Brands

• Bosch
• Hella

Fault Codes:

The fault code C1A20 indicates that the air suspension compressor is unable to build pressure quickly enough when filling the reservoir.

Why it happens:

Air suspension compressor failure typically occurs due to air leaks, clogged filters or dryers, electrical faults, or worn internal components.

Symptoms:

• The vehicle sits lower than normal - Especially after being parked overnight, indicating the system isn’t maintaining pressure.
• Uneven ride height - One side or corner of the vehicle may sag, suggesting the compressor can’t fill all air springs equally.
• Strange noises - Groaning, grinding, or whining sounds during operation often point to internal wear.
• Compressor runs excessively - If it runs longer than usual or doesn’t shut off, it may be compensating for leaks or inefficiency.
• Slow to lift - The vehicle takes longer than normal to return to ride height after starting, hinting at a weak compressor.
• Compressor doesn’t start - A total failure may prevent the compressor from turning on at all, disabling the suspension system.
• Warning lights - Suspension or ride height warning indicators may appear on the dashboard.

Parts to Replace

• Part # P-3730 The Air Suspension Compressor P-3730 by Arnott (AMK) is a premium direct-fit replacement for the Land Rover Discovery LR3, LR4, and Range Rover Sport.
• New Part # P-3431 The Arnott Industries Air Suspension Compressor part number P-3431 is the perfect replacement part for your Land Rover’s air suspension system.
• New LR072537 P2645 The Arnott Industries Air Suspension Compressor part number P-2645 is the perfect replacement for your faulty air suspension compressor in your Land Rover.
• Dunlop Unit Part # P-2807 The Arnott Industries Air Suspension Compressor part number P-2807 is a reliable and durable replacement part compatible with Land Rover models that use LR015303, LR023964, LR037065, and LR044360 part numbers.

Brands

• Arnott Industries

Fault Codes:

The fault codes C1131, C1A20, and C1A13 point to air suspension issues: a leak in the air spring system, slow pressure buildup, and failure to vent pressure properly.

Why it happens:

Air suspension strut failure typically occurs due to airbag leaks, worn seals, internal corrosion, or prolonged exposure to road debris and moisture.

Symptoms:

• Vehicle sagging - One corner or side sits noticeably lower, especially after being parked overnight.
• Bouncy or rough ride - The suspension feels overly soft or harsh, lacking proper damping.
• Uneven tire wear - A sagging strut can throw off alignment, leading to abnormal tread patterns.
• Knocking or clunking noises - Especially when going over bumps, due to internal wear or airbag deflation.
• Air compressor overworking - The system runs longer trying to compensate for lost pressure.
• Warning lights - Suspension or ride height alerts may appear on the dashboard.
• Visible cracks or dry rot - On the rubber airbag portion of the strut, often from age or exposure.
• Delayed height adjustment - The vehicle takes longer to rise or doesn’t level properly.

Parts to Replace

• Front AS2809 The Arnott Industries Air Suspension Strut, part number AS-2809, is a reliable replacement part for Land Rover models compatible with LR016414, LR016415, LR016416, and LR018398 part numbers.
• Rear AS2534 The Arnott AS2534 is a premium rear air suspension strut designed for Land Rover LR3, LR4, and Range Rover Sport models from 2005 to 2014.
• Rear Arnott Industries AS-2534 The Land Rover Rear Air Suspension Strut Kit is a high-quality replacement designed for Range Rover Sport (2005-2013) and Land Rover LR3/LR4 models equipped with air suspension systems.

Brands

• Arnott Industries

Fault Codes:

P0300-P0308 codes indicate random or specific cylinder misfires, often caused by ignition, fuel, or mechanical issues like compression loss.

Why it happens:

Engine misfires due to ignition coil failure typically occur when the coil produces a weak or no spark because of internal short circuits, overheating, or insulation breakdown, disrupting combustion in one or more cylinders.

Symptoms:

• Rough idle, especially when stopped or in gear
• Hesitation or jerking during acceleration, as the spark weakens under load
• Check engine light, often flashing with codes like P0300-P0308
• Hard starting or long cranking, particularly in cold weather
• Poor fuel economy, due to incomplete combustion
• Engine stalling, especially at low speeds or idle
• Strong fuel smell from the exhaust, caused by unburned fuel
• Noticeable loss of power, especially when climbing or overtaking

Parts to Replace

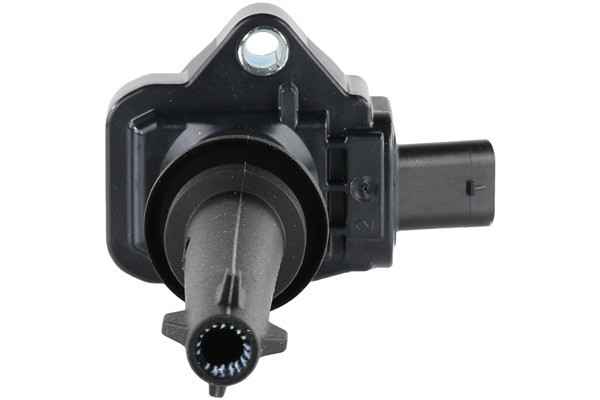

• Bosch Land Rover Ignition Coil - 0221604022 the Bosch Direct Ignition Coil (Part Number 0221604022) is a high-performance, reliable replacement for the original Land Rover AJ811378 and LR010687 coil and is designed to ensure your vehicle’s engine runs smoothly.

Brands

• Bosch

Fault Codes:

Fault codes P0300-P0308 indicate random or specific cylinder misfires, while P0365-P0368 point to camshaft position sensor circuit issues affecting ignition timing on bank 1.

Why it happens:

Spark plug failure typically occurs due to carbon buildup, oil fouling, overheating, improper gap, or incorrect torque during installation, all of which can disrupt spark delivery and combustion.

Symptoms:

• Rough idle, with vibrations or inconsistent RPMs
• Engine misfires, especially under load or during acceleration
• Check engine light, often triggered by codes like P0300-P0308
• Hard starting, particularly in cold weather
• Poor fuel economy, as combustion becomes inefficient
• Sluggish acceleration, due to incomplete ignition
• Strong fuel smell from exhaust, caused by unburned fuel
• Engine knocking or pinging, from delayed combustion

Parts to Replace

• Bosch Land Rover Spark Plug The Bosch 96327 spark plug is an OEM-grade iridium spark plug designed for high-performance Land Rover engines, particularly the 5.0L V8 found in models like the Range Rover, Range Rover Sport, and LR4 (2010-2017).

Brands

• Bosch

Fault Codes:

The P0335 fault code signals a malfunction in the crankshaft position sensor circuit, which disrupts the engine’s ability to track crankshaft rotation accurately.

Why it happens:

Crankshaft position sensor failure usually happens due to heat damage, vibration, oil contamination, or electrical issues like damaged wiring or faulty connectors that disrupt the sensor’s signal to the engine control unit.

Symptoms:

• Check Engine Light - Often the first sign, triggered when the ECU detects irregular crankshaft signals.
• Hard Starting or No Start - Without accurate crankshaft data, the engine may struggle to start or not start at all.
• Engine Stalling - Sudden or intermittent stalling while driving, especially at low speeds or idle.
• Rough Idling or Vibrations - The engine may shake or idle unevenly due to poor timing.
• Reduced Power and Acceleration - Misfires or incorrect timing can sap performance and throttle response.
• Poor Fuel Economy - Inefficient combustion leads to increased fuel consumption.
• Misfires - The ECU may mistime spark delivery, causing cylinders to misfire.

Parts to Replace

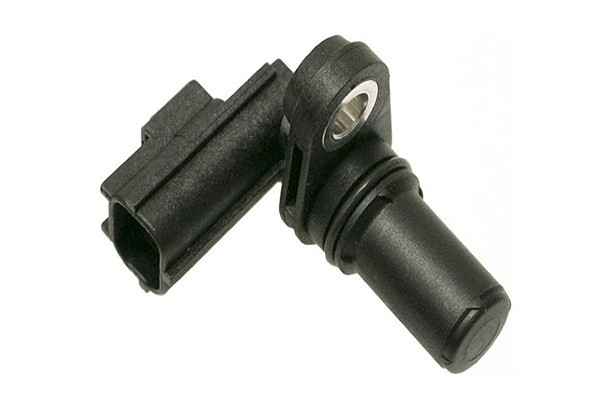

• OEM Land Rover Crankshaft Position Sensor The Land Rover Crankshaft Position Sensor 4005518 is an OE (Original Equipment) part commonly used in models like the Range Rover, Range Rover Sport, and LR4, particularly from the 2010-2016 range.

Brands

• OEM

Fault Codes:

The P0340 fault code indicates a malfunction in the camshaft position sensor circuit, which can disrupt engine timing and fuel injection, often leading to

Why it happens:

Camshaft position sensor failure typically occurs due to age-related wear, heat damage, oil contamination, or wiring issues that disrupt the sensor’s ability to accurately relay camshaft position data to the engine control unit.

Symptoms:

• Difficulty starting or no start at all
• Engine misfires or stalling
• Poor acceleration and reduced power
• Check engine light (often with codes like P0340)
• Increased fuel consumption
• Transmission shifting issues in some vehicles

Parts to Replace

• OE Supplier Land Rover Camshaft Position Sensor The Land Rover Camshaft Position Sensor CS144 is an OE (Original Equipment) supplier part used in various Land Rover models, including the LR2, LR4, Range Rover, and Range Rover Sport.

Brands

• OEM

Fault Codes:

The C1214 Power Steering Pressure Fault typically occurs due to a malfunction in the ABS hydraulic control circuit, often triggered by a faulty ABS relay, damaged wiring, poor ground connection, or a failing ABS module.

Why it happens:

Power steering pump failure typically occurs due to fluid contamination, low fluid levels, worn bearings, or a slipping drive belt.

Symptoms:

• Heavy or stiff steering - Turning the wheel feels harder than usual, especially at low speeds or when parking.
• Whining or squealing noises - Often heard when turning the wheel or starting the engine, caused by low fluid or worn pump bearings.
• Jerky or rough steering response - The wheel may feel inconsistent or resist movement intermittently.
• Groaning or knocking sounds - A deeper noise that can signal internal pump damage or air in the system.
• Power steering fluid leaks - Puddles under the car or low fluid levels in the reservoir can point to a failing pump or cracked hoses.
• Metal flakes in fluid - A sign of internal wear, often visible when checking the fluid reservoir.
• Power steering warning light - Some vehicles may alert you via the dashboard if pressure drops too low.

Parts to Replace

• Bosch Land Rover Power Steering Pump (Rebuilt) - KS01000588 The Land Rover Power Steering Pump (Rebuilt) LR014089 - Bosch KS01000588 is a high-quality OE replacement designed for Range Rover Sport and Discovery.

Brands

• Bosch

Why it happens:

Rack and pinion below failure typically occurs due to age-related cracking, exposure to road debris, or improper installation, allowing dirt and moisture to enter and damage the steering rack.

Symptoms:

• Visible cracks or tears - The most obvious sign is a split or deteriorated rubber boot, often visible during a quick inspection.
• Grease or fluid leaks - You might spot power steering fluid or grease leaking near the inner tie rod ends.
• Contaminated steering components - Dirt, water, or road debris can enter the rack, leading to premature wear.
• Clunking or knocking noises - Especially when turning, due to internal damage from contamination.
• Steering stiffness or looseness - As the rack wears out, you may feel increased resistance or play in the steering wheel.
• Uneven tire wear - A damaged rack can affect alignment, causing abnormal tread patterns.
• Steering wander - The vehicle may drift or require constant correction to stay straight.

Parts to Replace

• Lemforder Rack and Pinion Bellows - Front (Driver or Passenger Side) Part # 35013 01 is an OEM-quality replacement designed for Land Rover Range Rover Sport models (2006-2013) with 4.2L or 5.0L V8 engines.

Brands

• Lemforder

Fault Codes:

Fault codes P0101 and P0102 relate to the mass air flow (MAF) sensor, where P0101 signals a range/performance issue - often from airflow inconsistencies or sensor faults - and P0102 indicates a low input signal.

Why it happens:

Mass Air Flow (MAF) sensor failure typically occurs due to dirt buildup, oil contamination from oiled air filters, electrical faults, or sensor aging.

Symptoms:

• Check engine light, often triggered by codes like P0101 or P0102
• Rough idle or stalling, especially when coming to a stop
• Hesitation or jerky acceleration, due to incorrect air-fuel mixture
• Poor fuel economy, as the engine compensates for inaccurate airflow readings
• Black smoke from the exhaust, caused by running too rich
• Hard starting, particularly in cold conditions
• Reduced engine power or sluggish performance, especially under load
• Failed emissions test, due to increased pollutants

Parts to Replace

• Land Rover Volvo Mass Air Flow Sensor C2Z2989G The Denso C2Z2989G is an OEM-grade Mass Air Flow (MAF) sensor designed for select Land Rover, Jaguar, and Volvo models.
• Land Rover Volvo Mass Air Flow Sensor The Denso DMA0103 Mass Air Flow (MAF) sensor, cross-referenced with Land Rover/Volvo part number 30751293, is an OEM-grade sensor designed to deliver precise airflow measurements for optimal fuel metering and combustion efficiency.

Brands

• Denso

Fault Codes:

Fault codes P0130, P0131, P0140, and P0150 indicate oxygen sensor circuit issues - ranging from signal malfunctions (P0130, P0150), low voltage input (P0131), to no activity detected (P0140) - typically caused by sensor failure, wiring faults, or exhaust leaks.

Why it happens:

Oxygen sensor failure typically occurs due to contamination from fuel additives, oil or coolant leaks, prolonged exposure to high exhaust temperatures, or natural wear over time.

Symptoms:

• Check engine light, often triggered by codes like P0130, P0131, P0140, or P0150
• Poor fuel economy, as the engine runs rich or lean due to incorrect air-fuel readings
• Rough idle or engine stalling, especially at stops or during cold starts
• Black smoke or sulfuric/rotten egg smell from the exhaust, caused by unburned fuel
• Failed emissions test, due to increased pollutants
• Sluggish acceleration or engine hesitation, from improper fuel metering
• Engine misfires, as combustion becomes inconsistent
• Catalytic converter damage, if left unresolved over time

Parts to Replace

• Upstream 18121 The Bosch oxygen sensor is an OEM-spec component designed for Land Rover 5.0L V8 engines.
• Downstream Left 15740 The Bosch 15740 is a universal 4-wire heated oxygen sensor designed to meet OEM performance standards, and it’s often used as a replacement option for Jaguar and Land Rover.00
• Rear Passenger Side - 2344465 The Denso 234-4465 oxygen sensor, cross-referenced with Land Rover part LR013660, is an OEM-grade rear (downstream) sensor designed for 5.0L V8 petrol engines in select Land Rover models.
• Rear Right - DOX0411 The Denso DOX0411 oxygen sensor is a direct-fit, OEM-grade replacement for Land Rover part LR011711, designed for 5.0L V8 petrol engines in models like the Range Rover, Range Rover Sport, and LR4 (2010-2013).

Brands

• Bosch
• Denso

Fault Codes:

P2181 signals poor cooling performance; U0128 means lost communication with coolant module - often due to thermostat, sensor, or wiring faults.

Why it happens:

Coolant level sensor failure typically occurs due to corrosion, debris buildup, electrical connector issues, or aging, which cause inaccurate readings even when coolant levels are normal.

Symptoms:

• Coolant warning light stays on, even when levels are normal
• False low coolant alerts, causing unnecessary top-ups
• No warning when coolant is actually low, risking overheating
• Engine overheating, due to undetected coolant loss
• Erratic temperature gauge behavior, fluctuating or stuck readings
• Poor heater performance, especially during cold starts
• Check engine light, if the sensor fault triggers a diagnostic code

Parts to Replace

• Rein Land Rover Engine Coolant Level Sensor - ELC0060 The Rein Engine Coolant Level Sensor (part number ELC0060) is an essential component for any Land Rover owner who wants to ensure their vehicle’s engine is running at peak performance.
• NTK Land Rover Engine Coolant Level Sensor EE0010 The NTK Engine Coolant Level Sensor part number EE0010 for Jaguar and Land Rover is a high-quality replacement part that seamlessly replaces the original part number PCJ 500030.
• URO Coolant Level Sensor Part # PCJ500030 The URO Engine Coolant Level Sensor part number PCJ500030 is a high-quality replacement part for Land Rover vehicles.

Brands

• Rein
• NTK
• URO

Fault Codes:

Fault codes P0087 and P0088 indicate low or high fuel rail pressure, P0191 points to a faulty fuel rail pressure sensor, and P0230 signals a malfunction in the fuel pump control circuit.

Why it happens:

High-pressure fuel pump failure typically occurs due to lack of lubrication from infrequent oil changes, fuel contamination, overheating, or excessive pressure demands, all of which can wear out internal components or cause the pump to seize.

Symptoms:

• Hard starting or long cranking, especially in cold weather
• Loss of power or poor acceleration, particularly under load
• Engine misfires or hesitation, due to inconsistent fuel delivery
• Check engine light, often with codes like P0087 or P0191
• Engine stalling or surging, from erratic fuel pressure
• Fuel smell in exhaust or black smoke, indicating rich mixtures
• Whining or grinding noises from the pump area
• Poor fuel economy, as the engine compensates for pressure loss

Parts to Replace

• Bosch Land Rover Direct Injection High Pressure Fuel Pump 66807 The Bosch Direct Injection High Pressure Fuel Pump part number 66807 is a high-quality replacement part for your Jaguar or Land Rover vehicle.
• Delphi Direct Injection High Pressure Fuel Pump Part # HM10018 The HM10018 is a Delphi direct injection high-pressure fuel pump, designed for gasoline direct injection (GDi) systems in various Land Rover and Jaguar models.
• VDO A2C53323174Z - Fuel Pump Module Assembly.

Brands

• Bosch
• Delphi
• VDO

Fault Codes:

Fault codes P0201-P0208 indicate an open or short circuit in the fuel injector wiring for cylinders 1-8, while P0300-P0308 signal random or specific cylinder misfires.

Why it happens:

Fuel injector failure typically occurs due to fuel contamination, clogged nozzles, electrical faults, or excessive heat, which disrupt proper fuel atomization and delivery.

Symptoms:

• Rough idle or engine stalling, especially at stoplights or when cold
• Engine misfires, causing hesitation or jerking during acceleration
• Check engine light, often triggered by codes like P0201-P0208 or P0300-P0308
• Poor fuel economy, as the engine compensates for uneven fuel delivery
• Fuel odor, from leaking injectors or unburned fuel
• Hard starting or long cranking, particularly after sitting overnight
• Increased emissions, possibly leading to failed inspections
• Engine vibration, due to one or more cylinders not firing properly

Parts to Replace

• Bosch Land Rover Fuel Injector - 62120 The Bosch 62120 fuel injector, cross-referenced with Land Rover part number LR069897, is a gasoline direct injection (GDI) injector designed for high-performance applications in Land Rover and Jaguar vehicles.
• Bosch Land Rover Fuel Injector Seal Kit 628K2 The Bosch Fuel Injector Seal Kit part number 628K2 is a reliable and efficient solution for your Land Rover’s fuel injector needs.
• VDO Land Rover Fuel Filter - A2C31720900Z The Land Rover fuel filter LR043420, manufactured by VDO (part number A2C31720900Z), is an OEM-grade fuel filter assembly designed for Range Rover Sport and Discovery models.

Brands

• VDO
• Bosch

Fault Codes:

The P0562 fault code means the vehicle’s system voltage has dropped below the required threshold, often due to a weak battery, faulty alternator, poor wiring, or a failing voltage regulator.

Why it happens:

Alternator failure typically occurs due to overheating, worn-out internal components, electrical overload, or issues like corroded wiring and oil leaks that compromise its ability to generate and regulate voltage.

Symptoms:

• Dim or Flickering Headlights - Your lights may lose brightness or pulse, especially when idling.
• Battery Warning Light - Often shaped like a battery or labeled “ALT” or “GEN,” this light signals charging issues.
• Dead Battery - A failing alternator can’t recharge the battery, leading to repeated jump-starts.
• Electrical Failures - Power windows, radio, dashboard lights, or heated seats may act erratically.
• Strange Noises - A whining or grinding sound could mean worn bearings or internal alternator damage.
• Burning Smell - Overheating alternators or slipping belts can give off a hot, electrical odor.
• Engine Stalling or Difficulty Starting - Without proper voltage, the engine may sputter or fail to start.
• Slow or Non-Responsive Accessories - Things like windshield wipers or power seats may lag or stop working.

Parts to Replace

• Land Rover Alternator LR091107 The Jaguar Land Rover Alternator LR091107 by Denso is an OEM (Original Equipment Manufacturer) alternator designed for high-performance models like the Jaguar XF, F-Type, XFR-S, and Range Rover Sport.

Brands

• Denso

Fault Codes:

The fault codes P0615, B10D9, and U0100 indicate issues in the starting and communication systems: P0615 points to a starter relay circuit malfunction, B10D9 flags a starter control circuit fault.

Why it happens:

Starter failure usually happens due to worn-out internal components, electrical issues like corroded or loose wiring, overheating, or oil contamination.

Symptoms:

• Clicking sound when turning the key - A single loud click or rapid clicking often means the starter solenoid is trying but failing to engage.
• No crank, no start - You turn the key or push the button, and nothing happens - no engine turnover at all.
• Intermittent starting issues - Sometimes it starts, sometimes it doesn’t. This inconsistency is a classic sign of a failing starter.
• Grinding noise - A worn starter gear may not mesh properly with the flywheel, causing a harsh grinding sound.
• Slow cranking - The engine turns over sluggishly, as if the battery is weak, even when it’s fully charged.
• Smoke or burning smell - Overheating due to electrical issues or a jammed starter can produce smoke or a hot, acrid odor.
• Oil-soaked starter - If oil leaks onto the starter, it can cause internal damage and electrical shorts over time.

Parts to Replace

• Denso Starter Part # LR011262 The Denso Starter Motor part number LR011262 is an essential component for your Land Rover’s engine performance.
• Denso Land Rover Starter Motor (New) - DSN1364 The Land Rover Starter Motor LR011262, manufactured by Denso under part number DSN1364, is an OE-quality replacement designed for models like the Range Rover, Range Rover Sport, and LR4.

Brands

• Denso

Fault Codes:

B1A20, B1D20, and U1A00 indicate headlamp module, HID ballast, and lighting module communication faults - causing headlight malfunction or flickering.

Why it happens:

HID lighting ballast and control module failure typically occurs due to voltage irregularities, overheating, moisture intrusion, or aging components that disrupt the stable power needed to ignite and sustain HID bulbs.

Symptoms:

• Intermittent flickering - One or both headlights may turn on, then flicker or shut off randomly.
• Color shifting - Bright white or blue light may suddenly shift to pink, purple, or yellow hues.
• Low brightness - The headlights appear dimmer than usual, even with new bulbs.
• No light at all - The bulb doesn’t ignite, despite being functional.
• Buzzing or humming noise - A faint electrical sound from the headlight area can signal ballast trouble.
• Headlight shuts off quickly - The bulb lights up briefly, then cuts out.
• Frequent bulb burnouts - A failing ballast may deliver unstable voltage, shortening bulb life.
• Only one side fails - If just one headlight is affected, it could be the ballast or control module on that side.

Parts to Replace

• Valeo Jaguar Land Rover High Intensity Discharge (HID) Lighting Ballast - Front - The Jaguar Land Rover HID Lighting Ballast - Front - Valeo 47650 is an OE-quality component designed to regulate voltage and ignite HID (Xenon) headlamps in select Jaguar, Land Rover, and even Volvo models.
• URO Jaguar Land Rover Volvo High Intensity Discharge (HID) Headlight Control Module 63117180050 The URO High Intensity Discharge (HID) Headlight Control Module part number 63117180050 / 63 11 7 180 050 is the perfect replacement part for your BMW, Jaguar, Land Rover, or Volvo.

Brands

• Valeo
• URO Parts

Fault Codes:

B10A6, P0530, and U0164 indicate A/C compressor, refrigerant sensor, and HVAC module faults - causing erratic or failed climate control.

Why it happens:

HVAC compressor failure typically occurs due to overheating, electrical issues, refrigerant leaks, or poor maintenance, all of which strain the system and lead to internal damage.

Symptoms:

• Warm air from vents - Even with the A/C on full blast, the air stays warm or fluctuates in temperature.
• Loud noises - Grinding, squealing, or rattling sounds from the engine bay when the A/C is running can point to internal compressor damage.
• Compressor clutch not engaging - The clutch may fail to activate, preventing the compressor from circulating refrigerant.
• Visible refrigerant leaks - Oil or dye stains around the compressor area may indicate a leak.
• Reduced airflow - Weak or inconsistent airflow from the vents, even with the fan on high.
• Frequent circuit breaker trips - In home HVAC systems, this can signal the compressor is drawing too much power due to internal faults.
• Burning smell or smoke - Overheating or electrical failure inside the compressor can produce a hot, acrid odor.

Parts to Replace

• Nissens Jaguar Land Rover A/C Compressor (New) - 890123 The Jaguar Land Rover A/C Compressor LR056364, manufactured by Nissens (part number 890123), is a high-quality replacement unit designed for models like the Land Rover LR4, Range Rover, Range Rover Sport, and Jaguar XF, XJ, and XK.

Brands

• Nissens

Fault Codes:

The fault codes B1B50, B1B51, and B1B52 indicate issues with the blower motor circuit, speed control circuit, and resistor, respectively.

Why it happens:

Blower motor and resistor failure typically occurs due to overheating, excessive current draw from a worn motor, corrosion, or debris restricting airflow.

Symptoms:

• Fan only works on one speed - Often stuck on high or low, indicating resistor failure.
• No air from vents - Even with the fan on, nothing blows - could be a dead motor or resistor.
• Inconsistent airflow - Fan speed fluctuates or cuts out intermittently.
• Limited speed settings - Some fan speeds work, others don’t - classic resistor issue.
• Unusual noises - Grinding or squealing from the blower motor area.
• Burning smell - Overheating motor or resistor can emit a hot, electrical odor.
• Blower motor doesn’t turn on at all - Could be a complete motor failure or blown resistor.
• Visible corrosion or debris - Especially around the resistor or motor housing.

Parts to Replace

• Nissens HVAC Blower Motor Assembly (With A/C) Part # 87548 The Nissens HVAC Blower Motor Assembly part number 87548 is an excellent replacement for your Land Rover’s worn-out blower motor.

Brands

• Nissens

Why it happens:

Transmission mount failure typically occurs due to rubber deterioration, fluid contamination, excessive engine torque, or prolonged exposure to vibration.

Symptoms:

• Excessive vibration - You’ll feel more shaking through the cabin, especially during acceleration or idling.
• Clunking or banging noises - Sounds from underneath the car when shifting gears, accelerating, or braking can signal the transmission is shifting position.
• Engine or transmission movement - You might notice the engine or transmission visibly shifting when revving or changing gears.
• Unusual shifting behavior - Hard or delayed gear changes can result from misalignment caused by a loose mount.
• Driveshaft or chassis damage - If left unchecked, a bad mount can lead to misalignment and stress on other drivetrain components.
• Increased engine noise - Without proper isolation, more mechanical noise may enter the cabin.
• Uneven tire wear - Misalignment from a failing mount can subtly affect suspension geometry.
• Delayed throttle response - The drivetrain may hesitate or feel sluggish due to shifting components.

Parts to Replace

• OEM Parts Transmission Mount Part # 922655 The Automatic Transmission Mount part number 922655 is a high-quality replacement part for Land Rover vehicles that ensures reliable and efficient performance.
• URO Parts KKB500770 - Engine Mount.

Brands

• OEM
• URO

Fault Codes:

The fault codes P0750 to P0770 indicate malfunctions in various shift solenoids (A through E) within the automatic transmission, often causing erratic shifting, gear slippage, or failure to engage specific gear.

Why it happens:

Valve body solenoid failure typically occurs due to electrical overload, contaminated transmission fluid, overheating, or internal wear, all of which disrupt the solenoid’s ability to regulate hydraulic pressure and gear shifts effectively.

Symptoms:

• Harsh or delayed shifting - Gear changes feel rough or take longer than usual, especially when accelerating or decelerating.
• Slipping gears - The transmission unexpectedly shifts out of gear or fails to stay engaged.
• Failure to shift into certain gears - You might lose access to specific gears like reverse or overdrive.
• Erratic shifting patterns - The transmission may skip gears or shift at the wrong time.
• Stuck in limp mode - The vehicle may lock into a single gear to protect the transmission.
• Check engine light - Often triggered by solenoid-related fault codes like P0750-P0770.
• Unusual noises - Clunking or whining sounds during gear changes can point to hydraulic pressure issues.
• Poor fuel economy - Inefficient shifting can cause the engine to work harder than necessary.

Parts to Replace

• ZF BMW Jaguar Automatic Transmission Solenoid Kit - 1068298046 The ZF Automatic Transmission Solenoid Kit part number 1068 298 046 is a high-quality replacement part designed for Audi, BMW, and Land Rover vehicles.

Brands

• ZF

Fault Codes:

P181C, U0416, and P0729 indicate transfer clutch, stability module, and gear ratio faults - causing shifting issues and drivetrain instability.

Why it happens:

Transfer case failure in AWD systems typically occurs due to fluid leaks, worn gears or chains, sensor malfunctions, or electronic control issues, all of which disrupt power distribution between axles and compromise traction.

Symptoms:

• Grinding or humming noises - Especially when accelerating or turning, often due to worn gears or bearings.
• Difficulty shifting into or staying in AWD - The system may refuse to engage or randomly disengage.
• 4WD/AWD warning light - Illuminates on the dash, signaling a fault in the transfer case or related sensors.
• Fluid leaks - Puddles or stains under the vehicle may indicate a cracked housing or worn seals.
• Jerky or uneven power delivery - You might feel binding or hesitation when cornering or accelerating.
• Vehicle stuck in one drive mode - Unable to switch between 2WD and AWD, or stuck in low/high range.
• Metal shavings in fluid - If you drain the transfer case and see metal debris, internal damage is likely.

Parts to Replace

• Rein Land Rover Transfer Case Motor TDA0002 The Rein Transfer Case Motor part number TDA0002 is a high-quality replacement part designed specifically for Land Rover vehicles.
• Rein Land Rover Transfer Case Fluid FLDF001 The Rein Transfer Case Fluid is a high-quality component designed to enhance the performance of Land Rover vehicles

Brands

• Rein

Why it happens:

Transmission fluid leaks typically occur due to worn gaskets, cracked pans, damaged seals, loose drain plugs, or degraded cooling lines, all of which allow fluid to escape and compromise transmission performance.

Symptoms:

• Red or brown puddles under the vehicle - especially near the middle or front - are a classic giveaway.
• Low transmission fluid level on the dipstick, often accompanied by sluggish or erratic shifting.
• Burning smell - leaking fluid may hit hot engine or exhaust parts, creating a sharp, chemical odor.
• Delayed or slipping gear shifts, especially when accelerating or climbing hills.
• Grinding or whining noises from the transmission, caused by low fluid levels.
• Transmission overheating, which may trigger a warning light or limp mode.
• Check engine light - often triggered by pressure or temperature sensors detecting abnormal conditions.
• Visible fluid on transmission housing or cooling lines, especially around seals or gaskets.

Parts to Replace

• ZF Auto Trans Fill Plug (w/ Gasket) - 050132192201 The ZF Automatic Transmission Fluid Filler Plug part number 0501 321 922 is an essential component for maintaining the optimal performance of your BMW or Land Rover vehicle.
• ZF Jaguar Sealing Sleeve - 0501216272 The ZF Automatic Transmission Valve Body Sealing Sleeve part number 0501 216 272 is a must-have replacement part for the BMW, Jaguar, and Land Rover models.

Brands

• ZF

Fault Codes:

Fault codes P0236-P0238 indicate issues with the turbocharger boost sensor circuit - ranging from out-of-range performance (P0236), low voltage (P0237), to high voltage (P0238) - often caused by sensor failure, wiring faults, or abnormal boost pressure.

Why it happens:

Turbocharger boost sensor (MAP sensor) failure typically occurs due to heat damage, carbon buildup, moisture intrusion, or electrical issues.

Symptoms:

• Check engine light, often with codes like P0236, P0237, or P0238
• Reduced engine power or turbo lag, especially during acceleration
• Erratic or excessive boost pressure, leading to surging or hesitation
• Poor fuel economy, due to incorrect air-fuel mixture
• Black smoke from exhaust, caused by over-fueling
• Hard starting or rough idle, particularly when cold
• Failed emissions test, from improper combustion control

Parts to Replace

• Bosch Volvo Turbocharger Boost Pressure Sensor - 0261230295 The Bosch 0261230295 turbocharger boost pressure sensor, also known as Volvo part 31355463, is an OEM-grade MAP sensor designed for accurate boost monitoring in turbocharged Volvo models.

Brands

• Bosch
